Product Overview

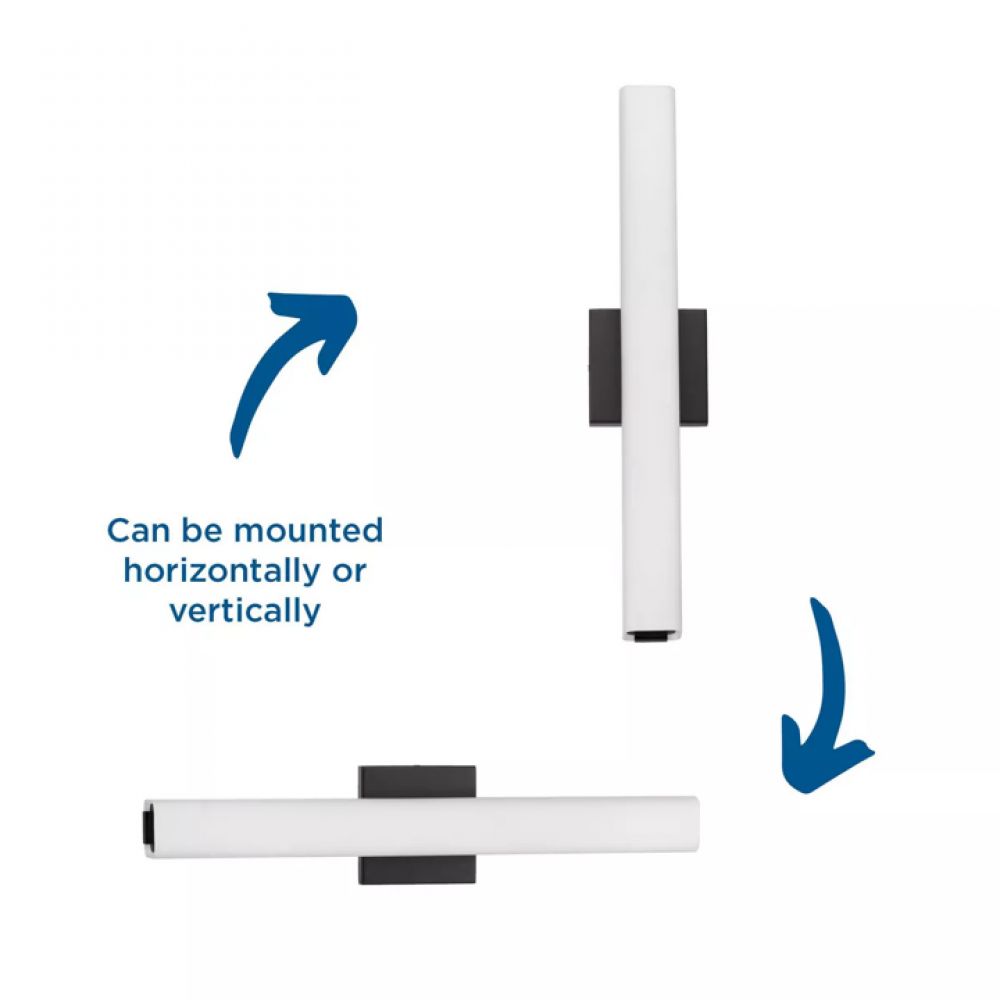

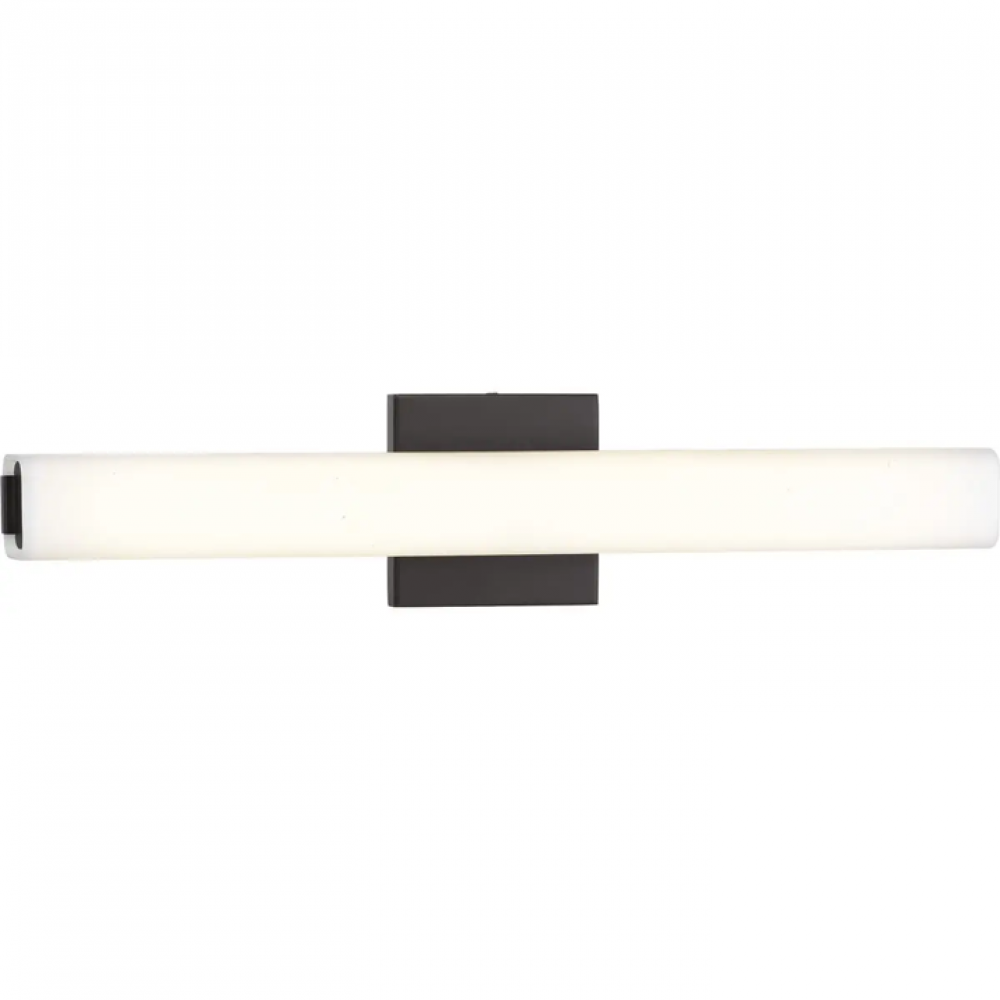

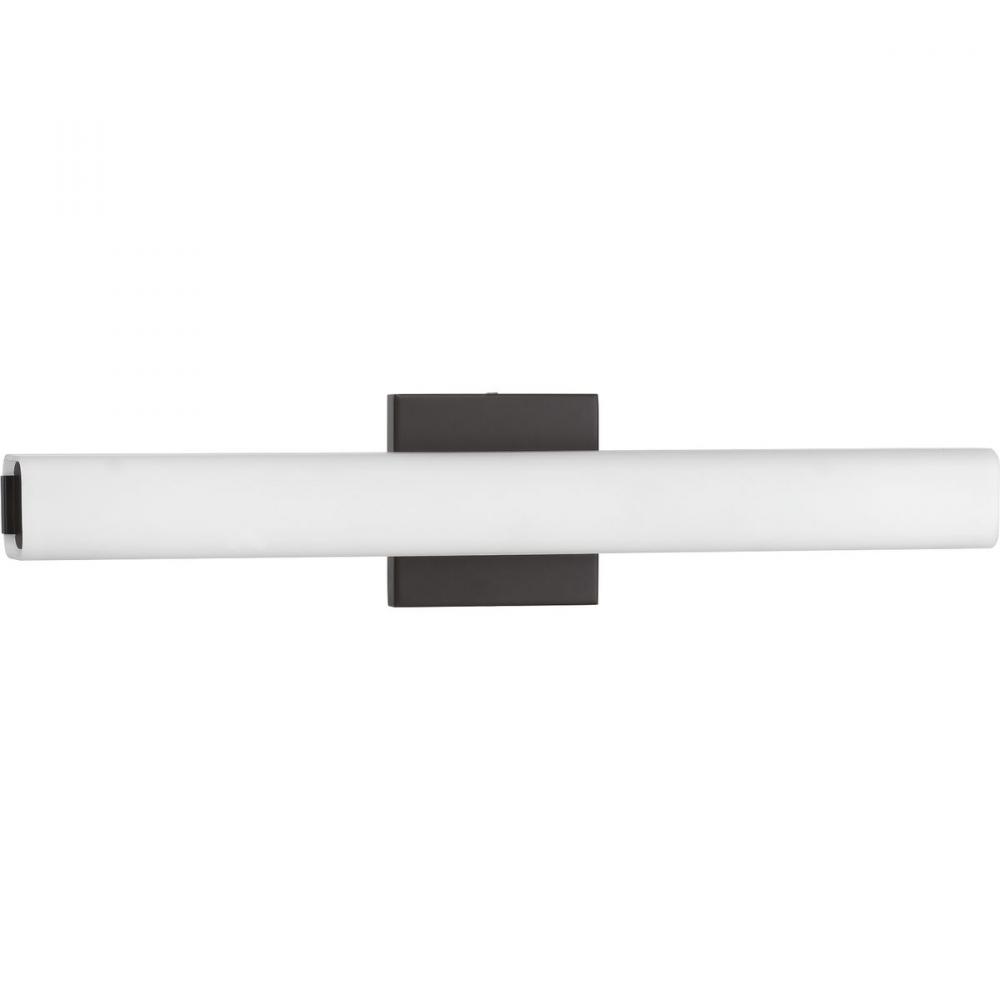

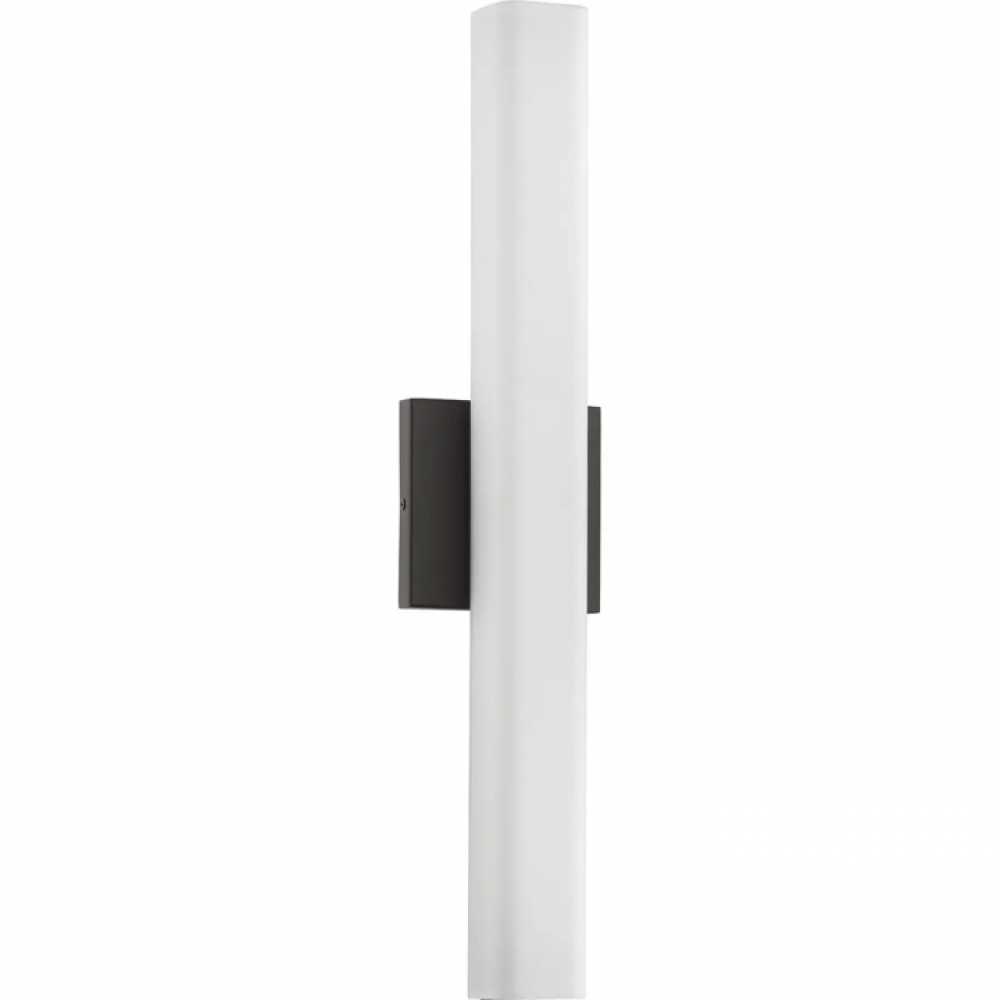

Beam LED Bath and vanity features a squared, tubular opal glass diffuser paired with a simple, modern metal canopy. An integrated LED source provides a variety of energy and cost savings benefits. Suitable for residential and commercial applications, This fixture can be installed horizontally or vertically. 22" Linear LED Bath. Architectural Bronze finish.

Standard Information

Category:

Bathroom Fixtures

Subcategory:

Vanity Lights

Finish:

Bronze

Style:

Modern

Option:

Energy Efficient

Title 24

Damp Rated

LED

Title 20

Voltage:

100-120

Glass Finish or Style:

Etched

Opal

Lumens:

450-800

Mount Type:

Flush Mount

Kelvin:

2501-3000

Location Rating:

Damp Rated

Refinement Options

Category:

Bath & Vanity

Finish:

Architectural Bronze

Style:

Modern

Option:

Damp Rated

Energy Efficient

Title 20

Title 24

Family:

Beam LED

Glass:

Etched Opal

Voltage:

120

Number of Bulbs:

1 Bulbs

Backplate Height:

4.75

Backplate Width:

4.75

Bulb Hours:

50000

Bulb Type:

Integrated LED

Height To Center of Outlet:

2.38

Introduction Date:

06/18/2018

Kelvin:

3000

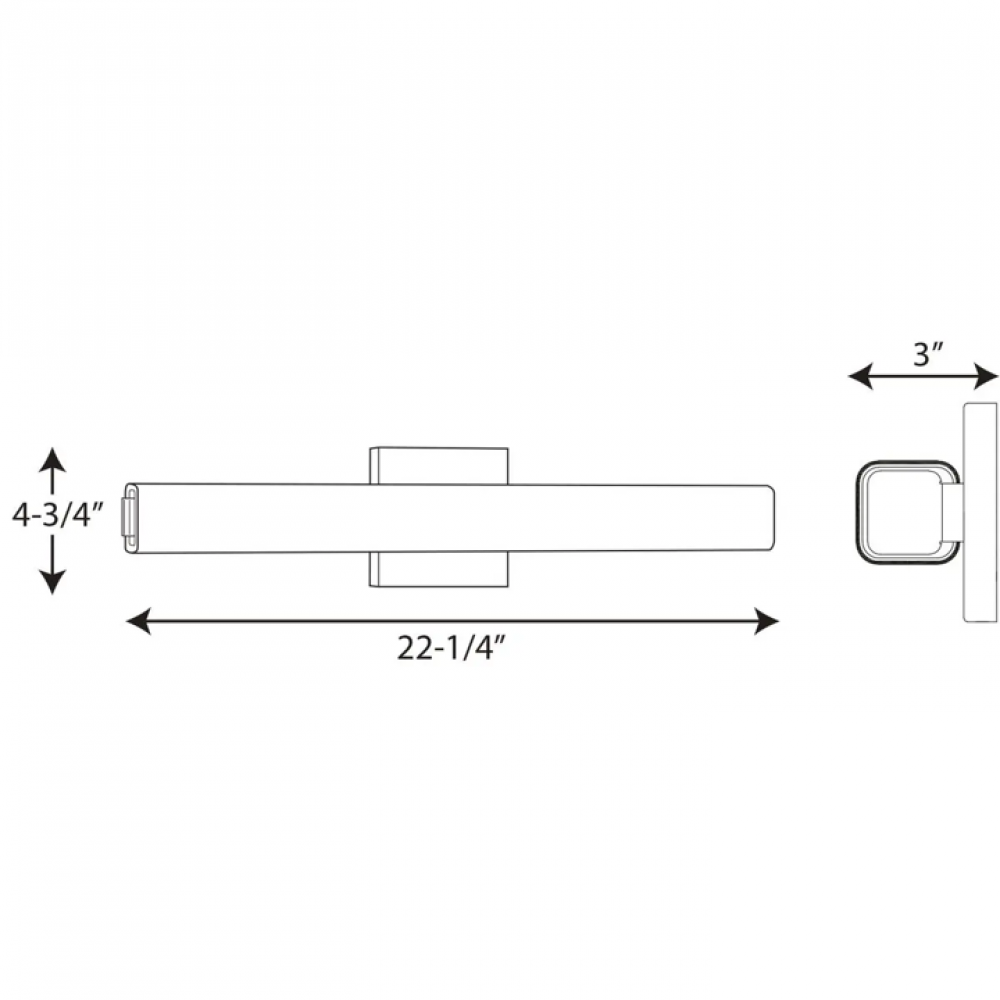

Length:

22.25

Lumens / Light Output:

2223

Material:

Steel

Ship Carton Height:

9.00

Ship Carton Length:

26.75

Ship Carton Width:

7.25

Ship Weight:

4.68

Special Features:

Ideal for a bathroom;Perfect for modern style settings;Handsome architectural bronze finish;Elegant etched opal glass shade;Fixture can mount horizontal and vertical;Includes 1 integrated LED (35 W), 2223 lumens, 3000 K, 90 CRI, dimmable;Measures 22.25-in

Vendor Ship Method:

Non UPS Shippable False

Warranty:

5-year Limited

Weight:

2.19

Wire Included:

6 in

Americans with Disabilities Act:

Yes

BackPlate Depth:

0.75

Bulb Base:

Integrated

Bulb CRI:

90 CRI

Bulb Included:

Yes

Can be Mounted Up or Down:

No

Canopy Shape:

Rectangular

Certified Listed Location:

Damp Location Listed

Construction Material Main Part:

Construction

Convertible Fixture Includes Both Mounts:

FALSE

Country of Origin:

CN

Dark Sky:

No

Design Series:

No

Dimming Compatability:

Lutron_Nova T NTELV-300;Lutron_Diva DVELV-300P;Lutron_Caseta Wireless;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Lutron_Ariadni AYCL-153P;Lutron_Ariadni AYLV-600P;Lutron_Maestro MAELV-601;Leviton_Renoir II AWRMG-EAW;Lutron_Nova N-600

Dimming Protocol:

Triac/Forward Phase;ELV/Reverse Phase

Dimming Range:

10%

Energy Efficient:

Yes

Energy Star:

No

Finish Type:

Painted

Frequency Rating:

60 Hz

Glass Height:

2.25

Glass Length:

22.25

Glass Shape:

Square/Rectangular

Glass Width:

2.25

JA8:

2016

Lamp Type Basic:

Solid State

Lamp Wattage:

35

Lens Shade Material:

Glass

Lumens per Watt:

62.10

Mount Location:

Wall

MTO:

No

Prop 65:

View

Prop 65 Description:

View

Safety Rating:

cETLus

Starting Temperature Minimum:

-10 °C

Title 20:

Yes

Title 24:

Yes
