Product Overview

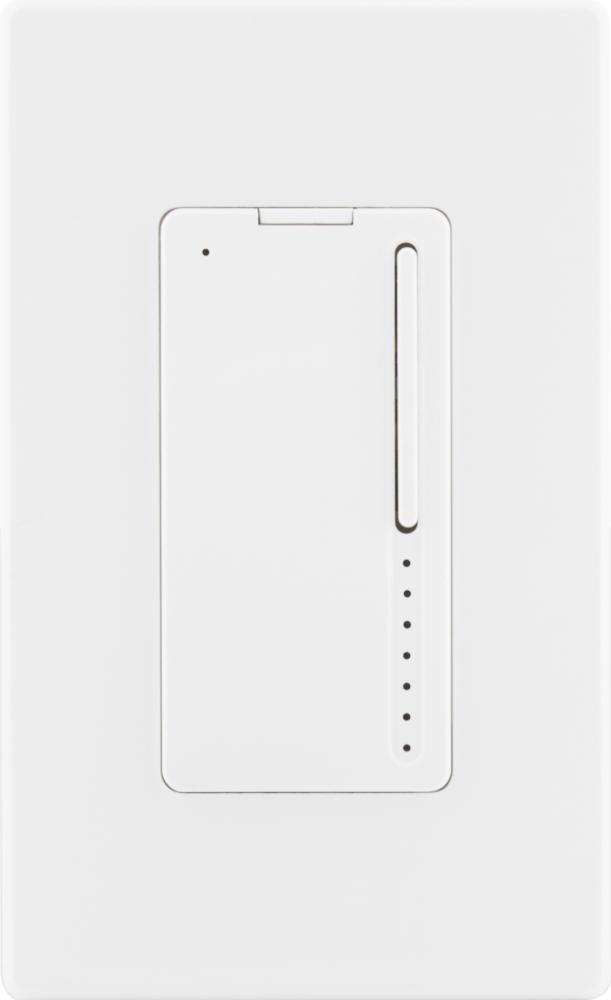

Starfish Smart Technology Wall Dimmer; White Finish

Smart Dimmers enable on/off and dimming light control throughout a switch circuit utilizing a STARFISH app. Measuring 4.63-inch x 2.76-inch x 1.72-inch a single gang plate is included, and neutral wire is required for connection. Dimmer Switch is rated for use with up to 450W of Incandescent or LED loads.

Standard Information

Category:

Lighting Controls

Subcategory:

Lightswitches

Finish:

White

Style:

Traditional

Option:

Dry Rated

Refinement Options

Category:

Switches & Accessories

Subcategory:

Dimmer Controls & Switches

Voltage:

120V

Wattage:

150W

Additional Info:

Load total cannot exceed 450W Incandescent/Halogen or 150W LED; Single pole or 3 Way Multi-location use; 5 GHz not supported; Dimming Range 10-100%

Bulb Type:

Not Applicable

Length:

1.71

Ship Carton Height:

5.12

Ship Carton Length:

2.17

Ship Carton Width:

2.95

Ship Weight:

0.37

Amps:

1.250A

BAA Compliant:

No

Carton Cubic Feet:

0.019

Cartons Per Unit:

1

CEC:

T20 Exempt - Not A Regulated Product

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Communication Protocol:

WiFi

Country Of Origin:

China

Dimension String:

L:1.71" W:2.76" H:4.53"

Dry Rated:

Yes

FCC Compliant:

Yes

Feature 1:

On/Off and Dimmer Wall Switch with STARFISH Wi-Fi Technology

Feature 2:

Enables on/off and dimming control of lighting with STARFISH smart app

Feature 3:

2.87-inch x 1.69-inch x 1.97-inch with single gang plate included

Feature 4:

Works with mobile and voice activated control

Feature 5:

Dry location

Finish Family:

White

Incandescent Equivalent:

450W

Indoor Outdoor:

Indoor

Installation Notes:

Neutral connection required

IOT Enabled:

Yes

IP Rating:

IP20

Material:

Plastic

No Switching Cycles:

100000

Operating Temp:

-20C (-4F) to +45C (+113F)

Operational Humidity:

0% - 80%

Order In Multiples Of:

1

Pack Type:

Box

Pairing Technology:

WiFi

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

Smart switches and dimmers enable use of smart control for on/off and dimming operation of existing lighting on the switch circuit. Single gang plate is included. Neutral wire is required for connection's. Works with mobile and voice activated control.

Safety Listing:

cETLus - Listed

Short Description:

SF/DIM/WALL/WHITE

Software Supported:

Tuya/Starfish APP

Software Upgradeable:

Yes

Specification Notes:

Dimmable; Only with Starfish App; Dimming range from 100 to less than or equal to 20 percent depending on dimmer control

Switch Type Name:

Dimmer

Tariff Code:

8536.50.9065

UNSPSC:

39122206

Voice Assistants Supported:

Siri Shortcuts;Alexa;Hey Google;SmartThings

Warranty:

1 Year Limited - Smart Products

Weight Lb.:

0.32
