Part Number: 52H38 / Vendor ID #: 525
8W Emergency LED Driver, Dual Flexible M
$210.78
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
Manufacturer availability unavailable.
Dimensions
Height: 1.55"
Width: 2.38"
Length: 13.35"

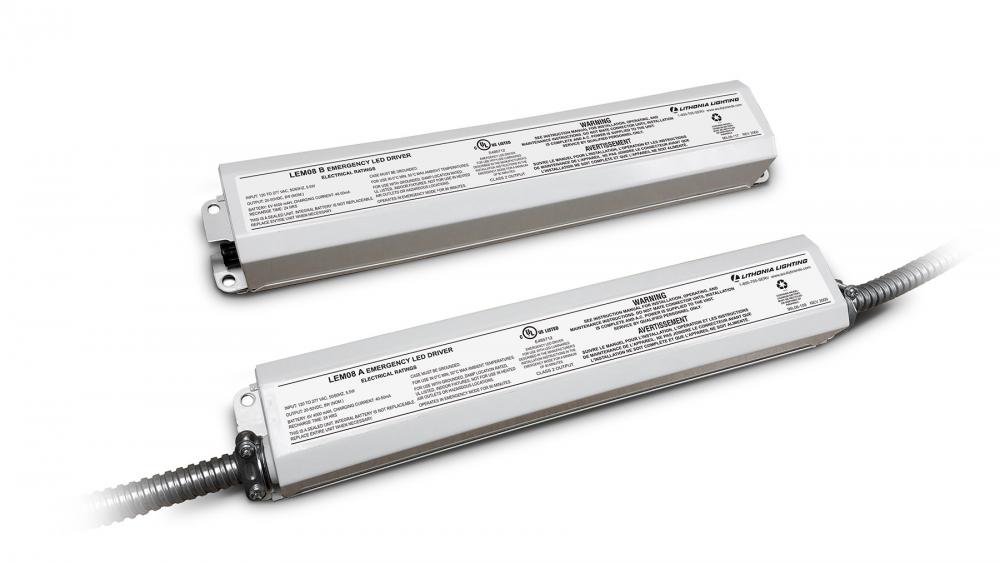

The LEM08 emergency LED driver enables the lighting fixture to deliver a minimum of 90 minutes illumination during a loss of normal AC power. It is UL Listed for factory or field installation with indoor, damp location luminaires utilizing 20-50VDC output voltage. When normal AC power fails, the LEM08 immediately drives the LED load at reduced light output for a minimum of 90 minutes. When AC power is present, the emergency LED driver ensures the sealed, maintenance-free, high-temperature nickel-cadmium batteries are fully charged within 24 hours after a discharge and remains fully charged until the next loss of AC power. The included test switch/pilot light provides visual and manual means of monitoring the system operation.
Category:
Specialty Items
Subcategory:
Ballasts
Style:
Commercial
Voltage:
100-120
Category:
Emergency LED Driver
Option:
Damp Rated
Title 20
Voltage:
120-277 V
Depth:
2.05
Keyword(s):
LEM08, Emergency LED Driver, Fixture Attached,Remote Mount,Unit to J Box
Length:
13.35
Ship Carton Height:
19
Ship Carton Length:
2
Ship Carton Width:
5
Ship Weight:
3.6
Weight:
3.4
ADA Compliant:
No
Airtight Rating:
No
Application Type:
Education, Enclosed & Gasketed, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Natatorium, Offices & Banks, Retail, Utility, Closet, Warehouses
Ballast Driver Required:
No
Batteries Included:
Yes
Battery Chemistry Type:
NiCd
Battery Recharge Time:
24 hours
Battery Run Time:
90 min
Battery Voltage:
6 V
Contains Lithium Battery:
No
Contains Mercury:
No
Contractor Select:
Yes
Country of Origin:
CN
CSA Approved:
No
Daylight Sensing:
No
Environment:
Indoor
Maximum Operating Temperature:
50
Mounting:
Fixture Attached, Remote Mount, Unit to J Box
Safety Rating:
IC, C-UL-US
Size:
13.35 x 2.38 x 1.55 IN
State Province Restrictions:
CA-Approved
Warranty:
3 Year Limited
